VacuMaid P110 Cyclonic Power Unit

  • Brand: VacuMaid
  • Model: P110
  • Sku: CV-906

The Vacu-Maid P110 Central Vacuum unit is manufactured in the USA. It is constructed of rolled galvannealed steel making it tough and durable. It also has a special powder coating which resists corrosion for the life of the vac unit.

The P110 is a Cyclonic unit which means that bags and/or filters are not necessary. When the unit is on, the cyclone effect created in the dirt can allows the larger heavier dirt and debris to be collected in the dirt can while the smaller dust particles are carried out in the exhaust much like a Dryer vent. Suction power at the hose is more consistent without the restriction of dirty filters. A patented AirChannel™ allows for an optional disposable can liner to be used making emptying the 25 Qt. capacity dirt receptacle virtually mess free.

The P110 has a 5.7” 2-stage Tangential Bypass motor. It is ideal for smaller size homes up to 5,000 sq. ft. Sound DB rating is 75. This unit carries a 10 year warranty.


  • NLA

Specifications


  • Warranty-Years : 10
  • CFM : 112
  • Amps : 13.6
  • Water Lift (In) : 111
  • Volts : 120
  • Sound Rating (Db) : 74
  • Dirt Can Capacity (Gals) : 6.75
  • Height (In) : 38 3/4
  • Diameter (In) : 13 5/8
  • Motor Type : 5.7", 2-stage, bypass
  • House Size Rating-Mfr. (Sq Ft) : 5000

Features


  • Filtration : Cyclonic
  • Filter Type : None
  • Disposable Bag Type : Optional Plastic
  • Utility Inlet : In-Take Mount
  • Construction : Metal
  • Muffler : Separate
  • Performance Indicators : None
  • Outside Exhaust : Required
  • Intake Side : Right
  • Exhaust Side : Right
  • Suggested House Size (Sq. Ft.) : Small <3,000

Fits Model


Documents


Circuit Board View - UP-061 Circuit Board
Use this circuit board if your unit is older than July 2003. Also if it's between July 2004 and July 2009.
$74.95
Motor View - MO-013 Motor
Use this motor if your unit is older than July 2003.
$125.00

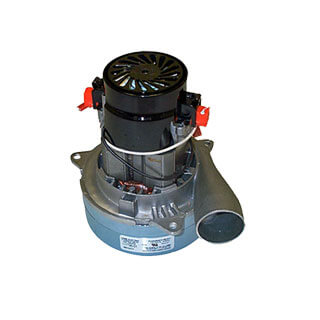

Motor View - MO-029 Motor
Use this motor if your unit is newer than July 2004.
$175.00
Circuit Board View - UP-101 Circuit Board
Use this circuit board if your unit is newer than July 2009 and used the 117795 motor.
$39.95
Inverted Filter Bag View - SI-097 Inverted Filter Bag
$39.95
Circuit Breaker View - UP-049 Circuit Breaker
Use this circuit breaker if your unit is newer than July 2009.
$6.50
Central Vacuum Bags Plastic 4-Pk View - SI-085 Central Vacuum Bags Plastic 4-Pk
$7.95
