Beam SC200B Builder's Model Power Unit thumb

Beam SC200B Builder's Model Power Unit

  • Brand: Beam
  • Model: SC200B
  • Sku: CV-117

The Beam Builder Series SC200B Central Vacuum Unit has 500 air watts and is ideal for condos, townhouses and starter homes up to 3,000 square feet in size. This unit features all steel upper cylinder construction for superior strength and a lightweight plastic bucket that facilitates emptying.

The SC200B utilizes cyclonic cleaning action and a permanent self-cleaning filter.  Every time the system is powered off, the filter cleans itself. There are no screens to clean or bags to replace. This design significantly reduces harmful allergens in the air, providing relief for allergy sufferers.

A clear window on the front of the dirt bucket shows when it needs to be emptied.  Made in North America, the Beam SC200B is backed by a 3-year warranty.

Beam authorized dealers are only able to ship this item up to 100 miles from their place of business.


  • NLA

Specifications


  • Water Lift (In) : 110
  • CFM : 120
  • Air Watts : 500
  • Amps : 12.9
  • Volts : 120
  • Height (In) : 33
  • Diameter (In) : 11
  • Dirt Can Capacity (Gals) : 4
  • Warranty-Years : 3
  • House Size Rating-Mfr. (Sq Ft) : 3000
  • Motor Type : 5.7", 1-stage, flow-thru
  • Sound Rating (Db) : N/A

Features


  • Filter Type : Inverted Bag
  • Filtration : Bagless with filter
  • Construction : Metal with plastic bucket
  • Suggested House Size (Sq. Ft.) : Small <3,000
  • Muffler : Separate
  • Utility Inlet : In-Take Mount
  • Performance Indicators : None
  • Outside Exhaust : Optional
  • Exhaust Side : Right
  • Intake Side : Either
  • Disposable Bag Type : Optional Paper

Fits Model


Documents


Motor View - MO-051 Motor
$69.95
Circuit Board View - UP-135 Circuit Board
$80.00

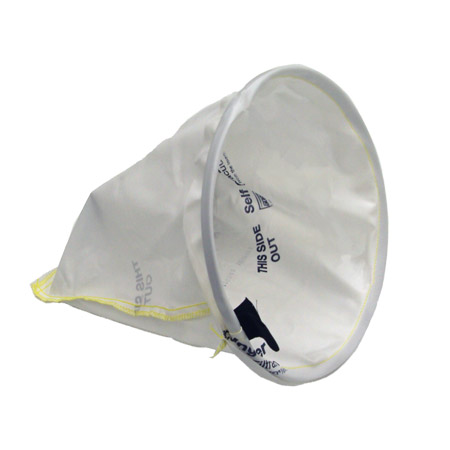

Filter Bag View - SI-107 Filter Bag
$49.95
